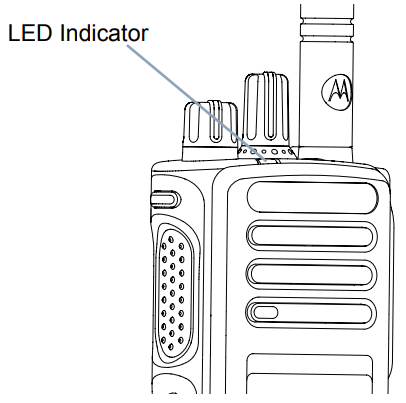

LED indicators show the operational status of your radio.
Blinking Red
Radio is transmitting at low battery condition, receiving an emergency transmission or has failed the self-test upon powering up.
Solid Green
Radio is powering up, or transmitting, Also indicates full charge of the battery when Battery Strength button is pressed.
Blinking Green
Radio is receiving a non-privacy-enabled call or data, or detecting activity over the air.
Double Blinking Green
Radio is receiving a privacy-enabled call or data.
Solid Yellow
Radio is monitoring a conventional channel. Also indicates fair battery charge when Battery Strength button is pressed.
Blinking Yellow
Radio is scanning for activity or receiving a Call Alert, or all local Linked Capacity Plus channels are busy.
Double Blinking Yellow
Radio is no longer connected to the repeater while in Capacity Plus or Linked Capacity Plus, all Capacity Plus channels or Linked Capacity Plus channels are currently busy, Auto Roaming is enabled, radio is actively searching for a new site. Also indicates radio has yet to respond to a group call alert, or radio is locked.
NOTE:
While in conventional mode, when the LED blinks green, it indicates the radio detects activity over the air. Due to the nature of the digital protocol, this activity may or may not affect the radio's programmed channel.
For Capacity Plus and Linked Capacity Plus, there is no LED indicator when the radio is detecting activity over the air.
